X-ray film viewers with shutters

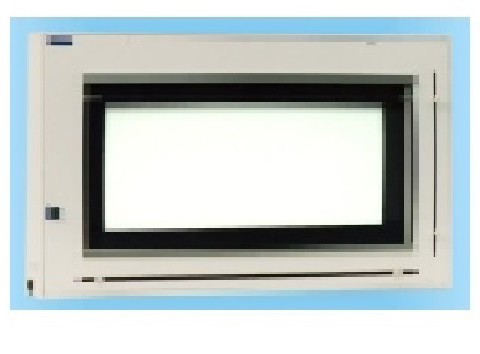

X-ray film viewers with shutters Cablas

X-ray film viewers with shutters

  • Stove enamelled steel structure, thickness 0,8 mm;
  • Fire epoxy painting color peel RAL 9010;
  • Smelted opaline plexiglass screen;
  • Neon tubes of 6.000°Kelvin with high frequency reactors feeding;
  • Upper and/or central film holder;
  • Speed bipolar switches on the front comp0lete with dimmer which allows a very good light regulation from 100% to 10%;
  • External fuses lagging type 5×20 (positioned on the bottom right side);
  • Feeding cable complete with schuko plug, CE 3. 0,75 ;
  • Predisposed for wall installation through expansion dowels;
  • Illuminator is made according to Directive 93/42/CEE – Medical Devices  – Class 1

And Directive 73/23 CEE (Low tension) 89/336 CEE (Electromagnetic compatibilità)

The construction meets Norms EN 60601 -1,2 / Din 6856 -1,2;

  • Feeding 230V / 50Hz + earth;
  • Maintenance : recurrent cleaning (each 6 months) of the internal screen.



2015 CE

DATA SHEET

HANDBOOK

Product Code Code Description
LXJ40SIZE 40 X 43 - OUTSIDE DIMENSION CM 60 X 62,5 X 10 - NUMBER OF TUBES 4 - 15W -LIGHT SECTION 1-40 X 43 - W 65 - A 0,35 - FUSES 1
LXJ80SIZE 80 X 43 - OUTSIDE DIMENSION CM 100 X 62,5 X 10 - NUMBER OF TUBES 4 - 30W -LIGHT SECTION 1-80 X 43 - W 135- A 0,60 - FUSES 1
LXJ120SIZE 105 X 43 - OUTSIDE DIMENSION CM 125 X 62,5 X 10 - NUMBER OF TUBES 4 - 36W -LIGHT SECTION 1-105 X 43 - W 165 - A 0,75 - FUSES 1
LXJ140SIZE 140 X 43 - OUTSIDE DIMENSION CM 160 X 62,5 X 10 - NUMBER OF TUBES 4 - 58W -LIGHT SECTION 1 - 140 X 43 - W 225 - A 1,10 - FUSES 2
